Amber
The compact edge of excellence
features
technical data
workings

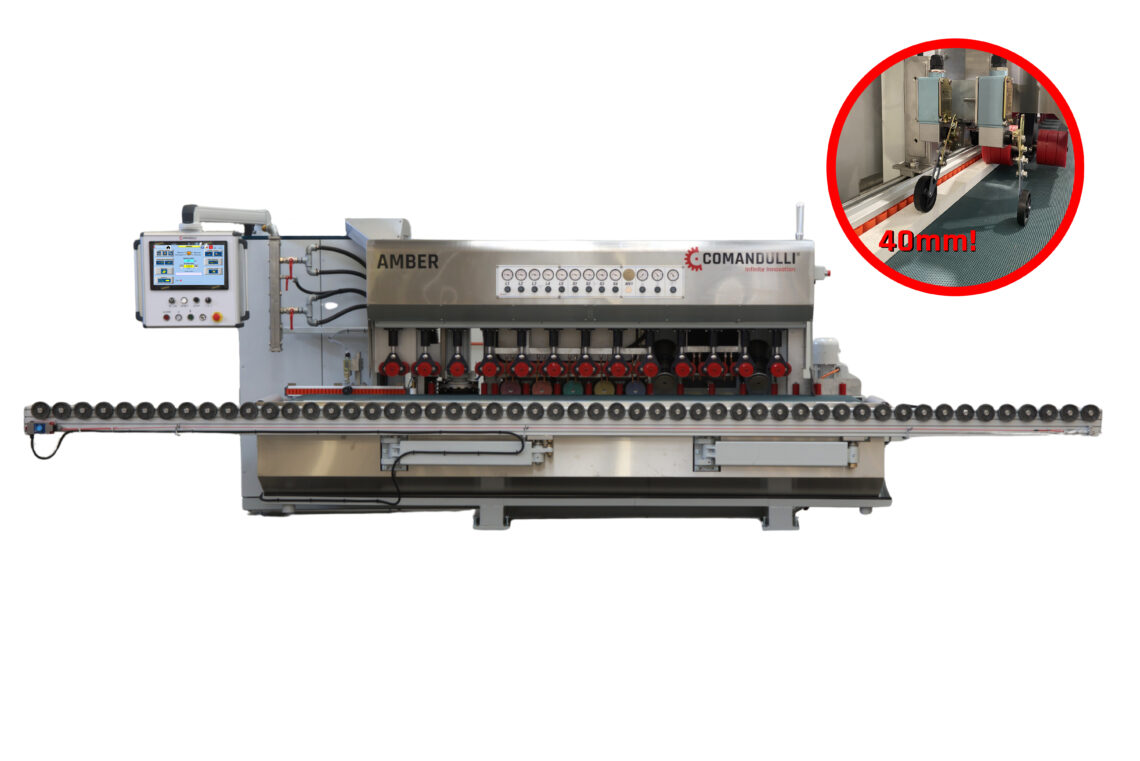

We are happy to introduce Amber, our new edge polisher, designed for those who are looking for maximum performance in a small space.
This innovative machine offers precision and versatility, with a compact design, that doesn’t compromise on quality. Designed and built according to Comandulli’s rigorous construction standards.
Every component, every detail is designed to guarantee long life and superior performance over time. The quality of the materials, the attention in the assembly phase and the strict control of each production step, ensure a strong and reliable machine to easily process natural stone, engineered stone and ceramics.
The machine is made to be connected to company ICT networks, external software and can be programmed remotely.
01. features
- The machine is equipped with a simple and reliable multifunction device for calibration and upper cutting.
- 5 sturdy, precise and maintenance-free polishing units, that guarantee high quality polishing to satisfy even the most demanding customers.
- 2 lower and 2 upper chamfering units
- The pneumatic pressers have been optimized to allow the processing of glued pieces and countertops with sink cut out.
- Completely new software allows simple and intuitive programming, with the ability to create touch-selectable programs for each job.
- New for Amber: possibility to process narrow strips from 40mm of width
The exclusive features of a Comandulli machine: AMBER
- Steel structure, electrowelded, fully worked by milling machines.
- All our machines are protected against corrosion through a modern treatment that follows different phases: sandblasting, metallization and painting. The painted covers are subject to cataphoresis treatment, cartes in stainless steeL.
- Main covers in stainless steel.
- Possibility of polishing the edge without the contrast bar, due to the special sliding system of the conveyor belt and the slab locking – by pneumatic pistons.
- Conveyor belt width 600mm; operated by a manual variable-speed drive, automatic speed adjustment from control panel; Belt driven on stainless steel plates.
- Each spindle is independent.
- Water collecting tank equipped with two lateral outlets.
Standard for the Amber
- Modern design using new generation materials
- Possibility to process narrow strips from 40mm
- The machine is made to be connected to company ICT networks, external software and can be programmed remotely
Features
- 5 frontal units
- 2 upper and 2 lower bevelling units
- Extractable bar for large work pieces
- Possibility to work narrow pieces from 4cm
Optional
- New generation multipurpose unit with manual or automatic vertical axis to calibrate the thickness and upper groove cutting
- Inlet and outlet roller conveyors
02. technical data
| DESCRIPTION | UM | AMBER |
|---|---|---|
| Frontal spindles | n° | opzionale |
| Bevelling spindles with TMM4 for calibrated bevels | n° | 5 |
| Bevelling spindles | n° | 4 |
| Diameter calibrating wheel | n° | opzionale |
| Diameter polishing tools | n° | opzionale |
| Diameter cutting blade | mm | 230 |
| Belt speed | mm | 130 |
| Belt width | mm | 165 |
| Processable slab thickness | m/1' | 0 - 3 |
| Minimum width | mm | 600 |
| Belt height | mm | 5 - 80 |
| Total power installed | mm | 40 |
| Dimensions (excluded roller tables) | mm | 780 |
| Weight | kW | 18 |
| Dimensioni (escluso rulliere) | m | 3,5 x 1,8 x 1,7 |
| Peso | kg | 3200 |
03. workings
The challenge continues
When our engineers and technicians compete with each other they outdo themselves, and you are the winners. By developing superior machines, able to process various working processes at the highest quality level, we help you to satisfy the many different requirements of your customers and satisfy your creativity, by giving you the possibility to extend your business.
Optional processings
