Coral
Compact in size, flawless in the details!
features
technical data
workings

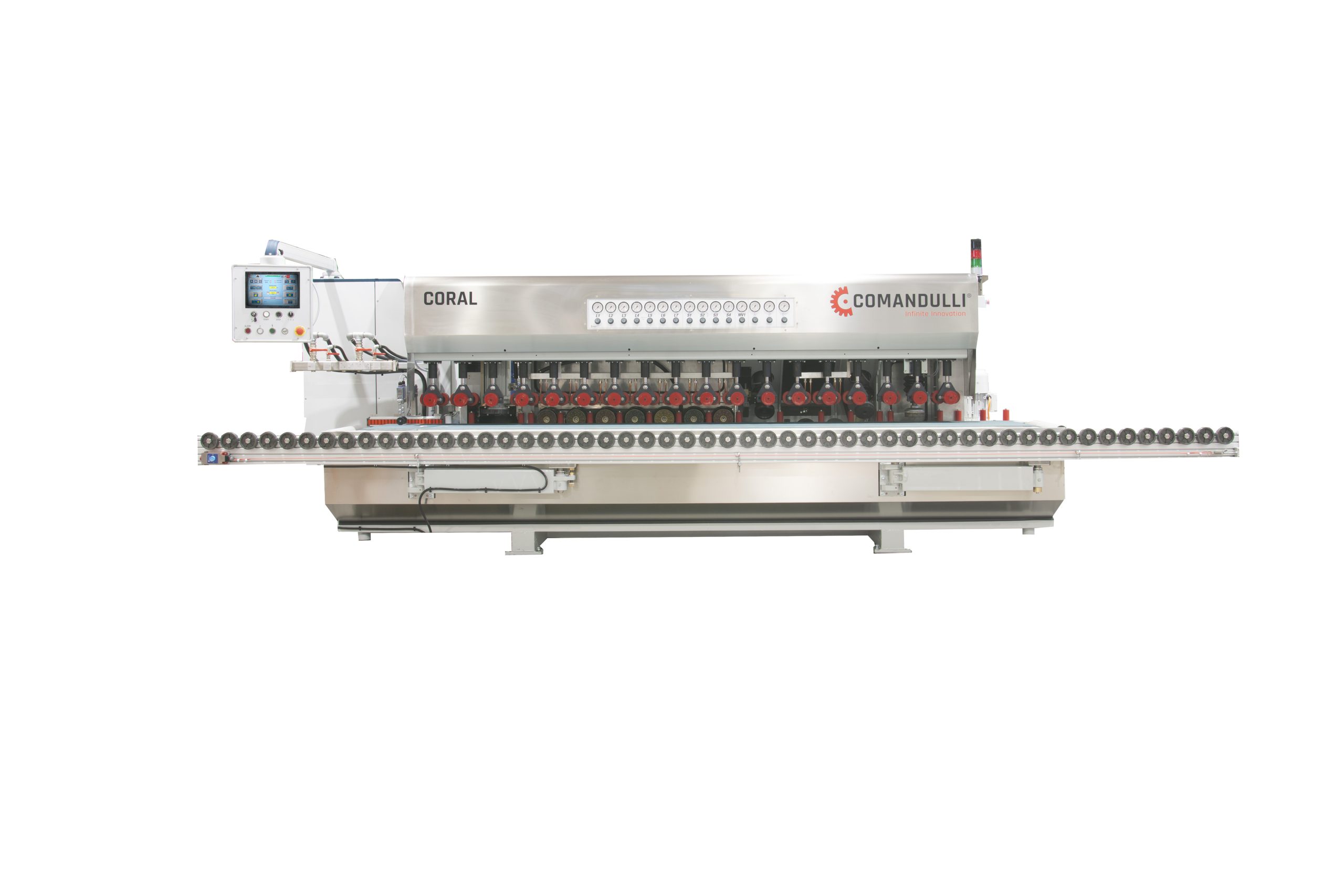

We are happy to introduce Coral, our new edge polisher, designed for those who are looking for maximum performance in a small space. This innovative machine offers precision and versatility, with a compact design, that doesn’t compromise on quality. Designed and built according to Comandulli’s rigorous construction standards.
Every component, every detail is designed to guarantee long life and superior performance over time. The quality of the materials, the attention in the assembly phase and the strict control of each production step, ensure a strong and reliable machine to easily process natural stone, engineered stone and ceramic.
The machine is made to be connected to company ICT networks, external software and can be programmed remotely.
01. features
- The machine is equipped with a simple and reliable multifunction device for calibration and upper cutting.
- 5 sturdy, precise and maintenance-free polishing units, that guarantee high quality polishing to satisfy even the most demanding customers.
- 2 lower and 2 upper chamfering units can be equipped with a manual probe system for a constant bevel.
- The pneumatic pressers have been optimized to allow the processing of glued pieces and countertops with sink cut out.
- Completely new software allows simple and intuitive programming, with the ability to create touch-selectable programs for each job.
The exclusive features of a Comandulli machine: RUBY
- Machine structure made of electro-welded steel, completely machined on a boring machine.
- All our machines undergo corrosion treatment through sandblasting, metallization, and painting.
- Coverings are coated with cataphoresis before painting, and the covers are made of stainless steel.
- Working without a counterbar is possible thanks to the special belt sliding system, guided by special grooves, and the workpiece anchored by pneumatic pistons.
- Conveyor belt rests on a stainless steel surface, guided by special grooves.
- Independent controls for each individual spindle.
- Water collection tank with two side drains.
Standard for the Coral
- Water savings thanks to solenoid valves for automatic opening and closing
- Modern and innovative design using cutting-edge materials
- New software designed to connect to corporate ICT networks and be remotely programmable
Features
- 7 frontal units
- 2 upper and 2 lower bevelling units
- Extractable bar for large work pieces
- Possibility to work narrow pieces from 6cm
Optional
- New generation multipurpose unit with automatic horizontal and vertical axis to calibrate the thickness, calibrate the edge, lower and upper groove cutting and shaping with profiling tools
- At the exit side choice between a second multipurpose unit and one or two vertical spindles to hone the calibrated strip, to remove the reinforcement net or for bushhammering
- First upper and lower bevelling unit with patented calibrated bevel device for a perfectly precise bevel from the beginning to the end of the work piece, with programmable width
- Inlet and outlet roller conveyors
02. technical data
| DESCRIPTION | UM | AMBER 55+4 |
|---|---|---|
| Frontal spindles | n° | opzionale |
| Bevelling spindles with TMM4 for calibrated bevels | n° | 5 |
| Bevelling spindles | n° | - |
| Diameter calibrating wheel | n° | 4 |
| Diameter polishing tools | n° | 130 |
| Diameter cutting blade | n° | 260 |
| Belt speed | mm | 260 |
| Belt width | mm | 130 |
| Processable slab thickness | mm | 165 |
| Minimum width | m/1' | 0 - 3 |
| Belt height | mm | 600 |
| Total power installed | mm | 5 - 80 |
| Dimensions (excluded roller tables) | mm | 60 |
| Weight | mm | 780 |
| kW | 20 | |
| m | 3,5 x 1,8 x 1,7 | |
| kg | 3200 |
03. workings
The challenge continues
When our engineers and technicians compete with each other they outdo themselves, and you are the winners. By developing superior machines, able to process various working processes at the highest quality level, we help you to satisfy the many different requirements of your customers and satisfy your creativity, by giving you the possibility to extend your business.
Optional processings
